SIGMA MONITOR

Scegli la giusta interfaccia

Sigma Monitor è compatibile con la maggior parte dei dispositivi di interfacciamento delle migliori marche presenti sul mercato.

Modbus, MQTT, SNMP, RTSP, sono solo alcuni dei protocolli che Sigma Monitor è in grado di gestire. Se non hai già il router a disposizione Newdep può aiutarti a trovare la soluzione migliore.

Connetti subito i tuoi device.

Di seguito puoi trovare alcune delle interfacce di comunicazione, router e gateway, con i quali connettere i tuoi device a Sigma Monitor già utilizzate e testate da Newdep..

Parlando di monitoraggio remoto, c’è la possibilità che gli impiani siano localizzati in paesi che richiedono certificazioni particolari o frequenze di trasmissione diverse da quelle usate in zona EMEA. Newdep è in grado di offrire tutto il supporto tecnico necessario alla ricerca e all’individuazione dei prodotti con le giuste specifiche e certificazioni per ogni tipo di applicazione.

Advantech ICR-3231(W)

Industrial 4G Router &IoT Gateway (EMEA)

Specifiche

ICR-3231 / ICR-3231W
LTE Cat.4 with 3G/2G fallback
Powerful CPU with 1.3 GB storage to host customer SW applications ƒ
2× SIM with cover, eSIM ready
2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
Robust metal cover with DIN and Wall mount options
Operational temperature range from -40 °C to +75 °C
Backup real time clock
Sleep mode & Power ignition
EN 50155 Railway compliance



ICR-3231W
Optional Wi-Fi 802.11ac, 2×2 MIMO
Optional Bluetooth v5.1 (class 1)
Optional GNSS receiver

Interfaccia cellulare

SIM Slots:
2× SIM (Mini SIM – 2FF) with cover, eSIM ready

Antennas:
2× SMA connector (1× Main, 1× Diversity)

LTE Parameters:
Cat.4, 3GPP E-UTRA Release 11
Supported FDD frequencies: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz)
Transfer rate: 150 Mbps (DL), 50 Mbps (UL)
Supported TDD frequencies: B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz)
Transfer rate: 130 Mbps (DL), 35 Mbps (UL)

HSPA+/UMTS Parameters:
Supported frequencies: B1 (2100 MHz), B8 (900 MHz)
Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)



EDGE/GPRS Parameters:
Supported frequencies: B3 (1800 MHz), B8 (900 MHz)
Transfer rate: 236.8 kbps (DL), 236.8 kbps (UL)

Certificazioni

Radio:
EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13, EN 303 413, EN 301 893, EN 300 328

EMC:
EN 301 489-1, EN 301 489-19, EN 301 489-52, EN 301 489-17, EN 61000-6-2

Safety:
UL/EN/AS/NZS 62368-1

Mechanical:
EN 60068-2-27, EN 60068-2-64, EN 60068-2-64, MIL-STD-810G, SAE J1455

Climatic:
EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-78, MIL-STD-810G, SAE J1455

Transportation:
E-Mark, EN 45545-2

Railway:
EN 50155 compliant

National:
CE, UKCA

Environmental:
REACH, RoHS3 and WEEE compliant

Cellular Module Approvals*:
Regulatory: GCF, CE, NCC, RCM
Carrier: Deutsche Telekom, British Telecom

*Approvals are valid for the integrated cellular module inside the router only. Cellular module approvals are not always applicable for the whole router – see “Standards and Regulations” chart for complete router approvals available.

Advantech ICR-3232(W)

Industrial 4G Router &IoT Gateway (ANZ / LATAM / Japan)

Specifiche

ICR-3232 / ICR-3232W
LTE Cat.4 with 3G/2G fallback
Powerful CPU with 1.3 GB storage to host customer SW applications ƒ
2× SIM with cover, eSIM ready
2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
Robust metal cover with DIN and Wall mount options
Operational temperature range from -40 °C to +75 °C
Backup real time clock
Sleep mode & Power ignition
EN 50155 Railway compliance



ICR-3232W
Optional Wi-Fi 802.11ac, 2×2 MIMO
Optional Bluetooth v5.1 (class 1)
Optional GNSS receiver

Interfaccia cellulare

SIM Slots:
2× SIM (Mini SIM – 2FF) with cover, eSIM ready

Antennas:
2× SMA connector (1× Main, 1× Diversity)

LTE Parameters:
Cat.4, 3GPP E-UTRA Release 11
Supported FDD frequencies: B1 (2100 MHz), B2 (1900 MHz), B3 (1800 MHz), B4 (1700 MHz), B5 (850 MHz), B7 (2600 MHz), B8 (900 MHz), B28 (700 MHz)
Transfer rate: 150 Mbps (DL), 50 Mbps (UL)
Supported TDD frequencies: 2300 MHz (B40)
Transfer rate: 130 Mbps (DL), 35 Mbps (UL)

HSPA+/UMTS Parameters:
Supported frequencies: B1 (2100 MHz), B2 (1900 MHz), B5 (850 MHz), B8 (900 MHz)
Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)



EDGE/GPRS Parameters:

Supported frequencies: B2 (1900 MHz), B3 (1800 MHz), B5 (850 MHz), B8 (900 MHz)
Transfer rate: 236.8 kbps (DL), 236.8 kbps (UL)

Certificazioni

Radio:

AS/CA S0242, AS/NZC 4268

EMC:

IEC 61000-6-2, IEC 61000-6-3

Safety:
UL 62368-1

Mechanical:
EN 60068-2-27, EN 60068-2-64, EN 60068-2-64, MIL-STD-810G, SAE J1455

Climatic:
EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-78, MIL-STD-810G, SAE J1455

Transportation:
E-Mark, EN 45545-2

Railway:
EN 50155 compliant

Carrier Approval:
Verizon, AT&T, FirstNet, T-Mobile (planned)

National:
RCM, Brazil – Anatel

Environmental:
REACH, RoHS3 and WEEE compliant

Cellular Module Approvals*:
Regulatory: GCF, FCC, Anatel, NCC, RCM Carrier: Telstra



*Approvals are valid for the integrated cellular module inside the router only. Cellular module approvals are not always applicable for the whole router – see “Standards and Regulations” chart for complete router approvals available.

Advantech ICR-3241(W)

Industrial 4G Router &IoT Gateway (NAM)

Specifiche

ICR-3241 / ICR-3241W
LTE Cat.4 with 3G/2G fallback
Carriers support; Verizon, AT&T, T-Mobile, FirstNet (Public Safety)
Powerful CPU with 1.3 GB storage to host customer SW applications ƒ
2× SIM with cover, eSIM ready
2× Ethernet 10/100, 1x RS232, 1x RS485 and I/O
Robust metal cover with DIN and Wall mount options
Operational temperature range from -40 °C to +75 °C
Backup real time clock
Sleep mode & Power ignition
EN 50155 Railway compliance

ICR-3241W
Optional Wi-Fi 802.11ac, 2×2 MIMO
Optional Bluetooth v5.1 (class 1)
Optional GNSS receiver

Interfaccia cellulare

SIM Slots:
2× SIM (Mini SIM – 2FF) with cover, eSIM ready

Antennas:
2× SMA connector (1× Main, 1× Diversity)

LTE Parameters:
Cat.4, 3GPP E-UTRA Release 11
Supported FDD frequencies: B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz), B12, B13, B14 (700 MHz), B66 (1700 MHz), B71 (600 MHz)
Transfer rate: 150 Mbps (DL), 50 Mbps (UL)



HSPA+/UMTS Parameters:
Supported frequencies: B2 (1900 MHz), B4 (1700 MHz), B5 (850 MHz)
Transfer rate: 4.2 Mbps (DL) / 2.2 Mbps (UL)



Certificazioni

Radio:

FCC part 22H, FCC part 24E, FCC part 27, PTCRB

EMC:

EN 61000-6-2, FCC part 15.B, ICES-003 Issue 6

Safety:
UL/EN/AS/NZS 62368-1

Mechanical:
EN 60068-2-27, EN 60068-2-64, MIL-STD-810G, SAE J1455

Climatic:
EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-78, MIL-STD-810G, SAE J1455

Transportation:
E-Mark, EN 45545-2

Railway:
EN 50155 compliant

Carrier Approval:
Verizon, AT&T, FirstNet, T-Mobile (planned)

National:
FCC, IC

Environmental:
REACH, RoHS3 and WEEE compliant

Cellular Module Approvals*:
Regulatory: GCF, FCC, PTCRB, IC
Carrier: Verizon, AT&T, FirstNet, T-Mobile, U.S. Cellular, Rogers, Telus

*Approvals are valid for the integrated cellular module inside the router only. Cellular module approvals are not always applicable for the whole router – see “Standards and Regulations” chart for complete router approvals available.

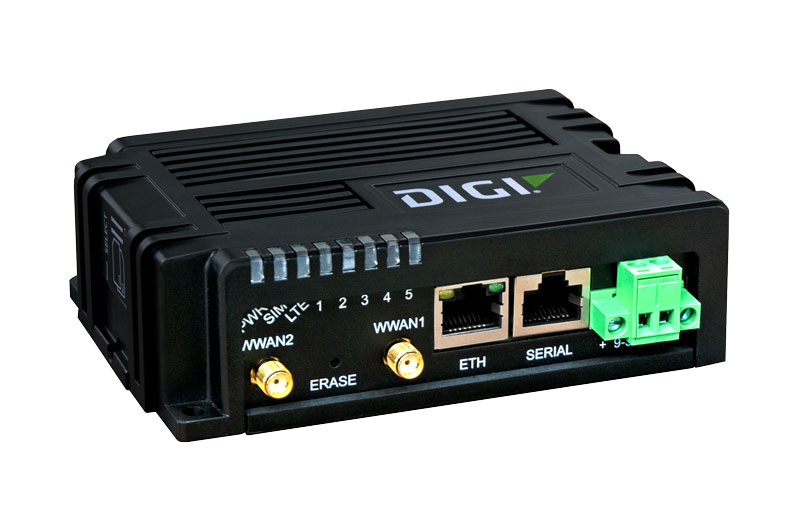

DIGI IX10

LTE Cat 4 Global, (1) Ethernet, RS-232/485 (GLOBAL)

Specifiche

Industrial Router 4G
2x Mini-SIM (2FF)

1x Ethernet RJ-45; 10/100 Mbps (auto-sensing)

1x RJ-45 10-pin (10P10C); RS-232/485; software selectable – RS-232 DTE (RXD, TXD, RTS, CTS, DTR, DCD, DSR, RI)
– RS-485 (TX/RX+; RX/TX-); half-duplex
Operating temperature range: -40 to +70 °C

Glass-filled polyphenylene sulphide (PPS) / IP30

Frequenze

LTE (G4):
LTE Cat 4: B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B38, B39, B40, B41
3G: B1, B2, B4, B5, B6, B8, B19
2G EDGE / GPRS: 850 / 900 / 1800 / 1900 MHz

Connectors:
(2) 50 Ω SMA (center pin: female)

SIM Slots:
(2) Mini-SIM (2FF)

SIM Security:
Behind SIM cover, secured with screw (#1 Phillips)

Certificazioni

Cellular:
Visit www.digi.com/resources/certifications for latest cellular certifications

Safety:
IEC62368-1, CB, EN62311

Environmental:
ROHS3

Emissions / Immunity:
CE; RED; FCC Part 15, Subpart B; ICES-003; AU/NZS CISPR32

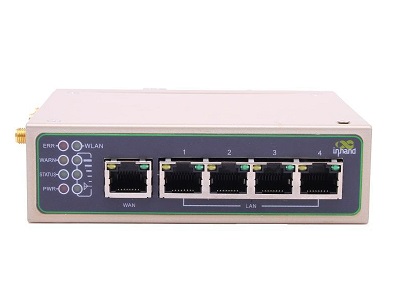

Inhand IR-615-S-FQ53

Industrial LTE Router (EMEA)

Specifiche

2x SIM for redundancy
4x Ethernet 10/100 Mpbs (LAN)
1x Ethernet 10/100 Mpbs (WAN)
1x RS232 or RS485 RJ-45
Operating temperature range: -20 to +70 °C
Wall and DIN mount options, Metal enclosure

Frequenze

LTE Cat1
FDD: B1/B3/B7/B8/B20/B28
WCDMA: B1/B8
GSM/EDGE: B3/B8LTE

Certificazioni

In base ai modelli:
CE, FCC, PTCRB, IC, IMDA, RCM, Verizon, AT & T, T-Mobile, UL, Class I Division 2, E-Mark, JATE/TELEC

Inhand IR-615-S-L3 FQ58

Industrial LTE Router (Europe & APAC)

Specifiche

2x SIM for redundancy
4x Ethernet 10/100 Mpbs (LAN)
1x Ethernet 10/100 Mpbs (WAN)
1x RS232 or RS485 RJ-45
Operating temperature range: -20 to +70 °C
Wall and DIN mount options, Metal enclosure

Frequenze

LTE Cat4
LTE-FDD Band 1/3/7/8/20/28A
TDD:  B38/B40/B41
WCDMA: B1/B8
GSM: B3/8

Certificazioni

In base ai modelli:
CE, FCC, PTCRB, IC, IMDA, RCM, Verizon, AT & T, T-Mobile, UL, Class I Division 2, E-Mark, JATE/TELEC

Inhand IR-615-S-FQ88

Industrial LTE Router (Japan)

Specifiche

2x SIM for redundancy
4x Ethernet 10/100 Mpbs (LAN)
1x Ethernet 10/100 Mpbs (WAN)
1x RS232 or RS485 RJ-45
Operating temperature range: -20 to +70 °C
Wall and DIN mount options, Metal enclosure

Frequenze

LTE Cat4
FDD:B1/B3/B8/B18/B19/B26
TDD:B41
WCDMA:B1/B6/B8/B19
GSM:B2/B3/B5/B8

Certificazioni

In base ai modelli:
CE, FCC, PTCRB, IC, IMDA, RCM, Verizon, AT & T, T-Mobile, UL, Class I Division 2, E-Mark, JATE/TELEC

Avantech Wise-4051

Modulo Wireless IoT con porta RS-485

  • WiFi 2.4 GHz IEEE 802.11b/g/n WLAN
  • Protocolli supportati: Modbus/TCP, TCP/IP, UDP, DHCP, HTTP, MQTT
Specifiche

8-ch digital input with 1-port RS-485 for Modbus devices
2.4GHz Wi-Fi reducing the wiring cost during big data acquisition
Easily extend the existing network by adding APs, and share existing Ethernet software
Configured by mobile devices directly without installing any software or Apps
Zero data loss using the log function with RTC time stamp
Data can be automatically pushed to Dropbox or computer
Supports RESTful web API in JSON format for IoT integration

Certificazioni

 CE, FCC, R&TTE, NCC, SRRC, RoHS

Advantech ICR-2431

Entry-Level 4G router LTE Cat.4 (EMEA)

Specifiche

LTE Cat.4 with 3G/2G fallback ƒ
2× SIM for redundancy
2× Ethernet 10/100 Mbps
1× RS232, 1× RS485
1× DI, 1× DO
Wide operational temperature range
Wall and DIN mount options
Linux based OS & SW customization

Interfaccia cellulare

SIM Slots:
2× SIM (Mini SIM – 2FF) with cover, eSIM ready

Antennas:
2× SMA connector (1× Main, 1× Diversity)

LTE Parameters:
Supported FDD frequencies: B1 (2100 MHz), B3 (1800 MHz), B7 (2600 MHz), B8 (900 MHz), B20 (800 MHz), B28A (700 MHz)
Supported TDD frequencies: B38 (2600 MHz), B40 (2300 MHz), B41 (2500 MHz)
Transfer rate: 150 Mbps (DL), 50 Mbps (UL)

HSPA+/UMTS Parameters:
Supported frequencies: B1 (2100 MHz), B8 (900 MHz)
Transfer rate: 42 Mbps (DL), 5.76 Mbps (UL)



EDGE/GPRS Parameters:
Supported frequencies: B3 (1800 MHz), B8 (900 MHz)
Transfer rate: 296 kbps (DL), 236.8 kbps (UL)

Certificazioni

Radio:

EN 301 511, EN 301 908-1, EN 301 908-2, EN 301 908-13

EMC:
EN 301 489-1, EN 301 489-19 , EN 301 489-52, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Safety:
EN 62 368-1, IEEE 802.3

National:
CE

Mechanical:
EN 60529

Climatic:
EN 60068-2-1, EN 60068-2-2, EN 60068-2-14, EN 60068-2-30

Environmental:

REACH, RoHS3, WEEE



Se sei già in possesso del router o del gateway sottoscrivi subito un abbonamento a Sigma Monitor e inizia a controllare e gestire i tuoi impianti. Saremo lieti di fornirti tutte le informazioni e l’aiuto necessario alla configurazione del sistema.

Newdep ti aiuterà a configurare i tuoi router per collegarli semplicemnte e velocemente alla piattaforma di Sigma Monitor per consentirti di iniziare ad ud usfruire il prima possibile dei vantaggi del sitema RMS.

“Il nostro team è a disposizione per studiare e risolvere ogni tua esigenza!”

La nostra squadra di ingegneri è in grado di affrontare e risolvere ogni tua esigenza per ogni tipo di controllo e monitoraggio remoto per tutti i tuoi impianti. L’esperienza decennale di Newdep nel campo automotive e nell’interfacciamento con centraline di controllo dei più svariati tipi di impianti industriali ci consente di fornire soluzioni su misura per ogni esigenza del cliente.

RICHIEDI UN APPUNTAMENTO

Contattaci ora, un nostro consulente ti risponderà nel più breve tempo possibile!
